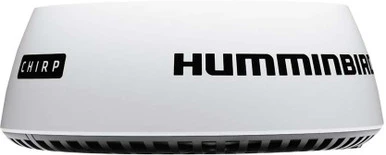

Humminbird 750013-1 HB 2124 CHIRP Radar

Compatible with select networking HELIX models and ONIX, the Humminbird 750013-1 HB 2124 CHIRP Radar features CHIRP pulse compression, setting a new standard for compact solid state radar. The HB 2124 delivers superior RADAR imaging on both long and extremely short ranges, which translates to better situational awareness in low-visibility conditions and helps identify birds and floating obstacles, offering clues as to where gamefish are located. Not to mention, you can also track weather and vessels with amazing definition.

Humminbird 750013-1 HB 2124 CHIRP Radar Features:

• Antenna Dimension – 21 in. Enclosed Dome
• Antenna Type – Patch Array
• Peak Power Output – 20W
• Transmit Frequency – 9354 to 9446 MHz
• Beam width (nominal) – 4.9° Horizontal and 20° Vertical
• Input Voltage – 12 or 24 VDC (Minimum – 10.8 Volts, Maximum – 31.2 Volts)
• Networking – Ethernet
• Maximum Range Scale – from 1/16 to 24 nautical miles
• Power Consumption – Transmit mode – 17W; Standby Mode – 7W; Sleep Mode – 2W
• Duplexer – Circulator
• Pulse Widths @ 3 dB – 40 ns to 14.7 µs
• CHIRP Lengths – 400 ns to 20µs
• CHIRP Bandwidth – Up to 32 MHz
• IF Bandwidth – 26 MHz
• Noise – Less than 4 dB
• Polarization – Horizontal
• Waterproofing – IPX6
• Weight – 12.3 lbs (5.6 kg)
• Compatibility Networking HELIX models and all ONIX models
